Product
HT-1020DS3
PRODUCT
제품의 특징
제품 설명 준비중입니다
Overview

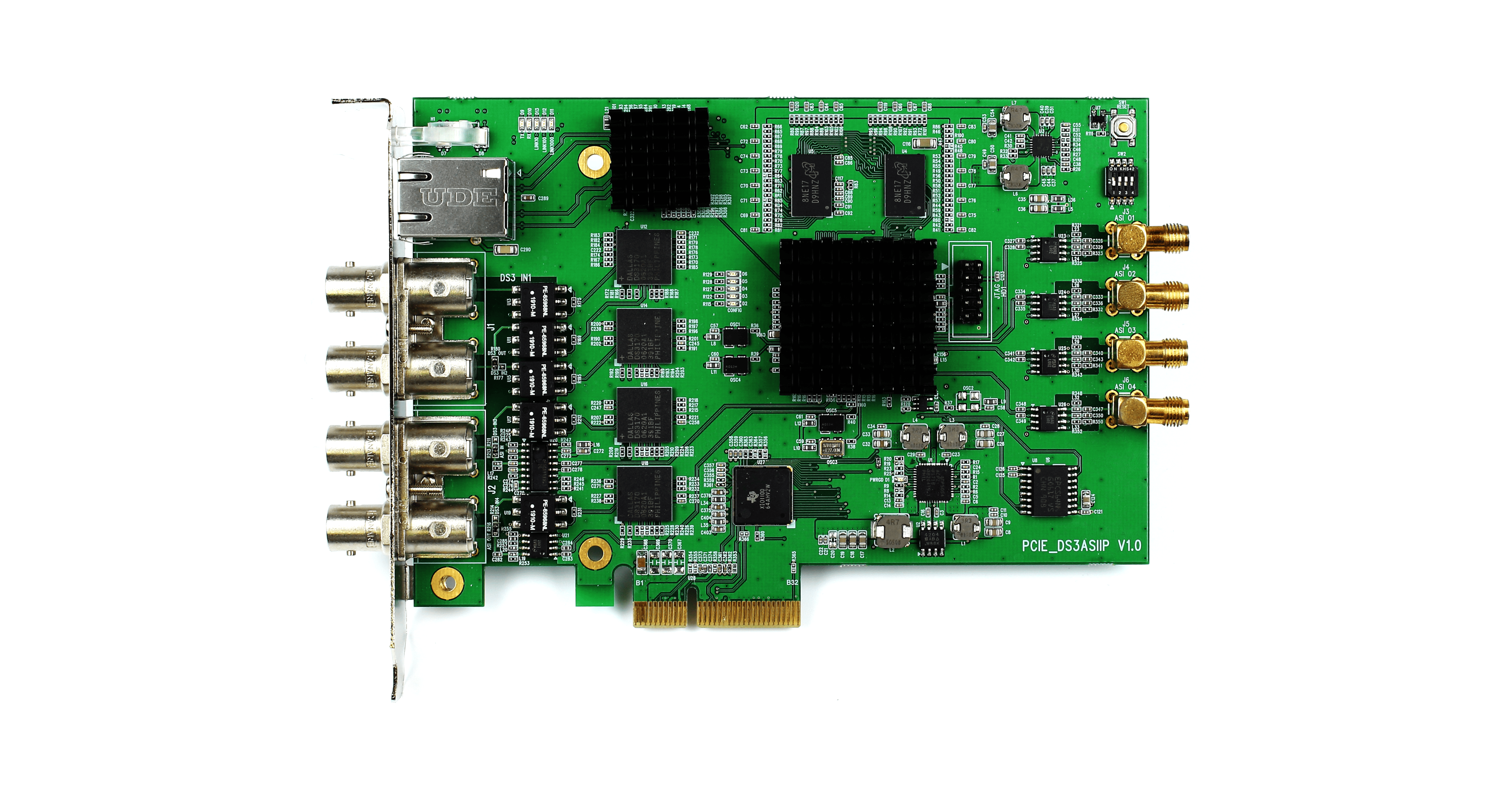

- HT-1020DS3은 DS3 기반 Converter Card로서 DS3로 입력된 방송 스트림을 DVB-ASI & IP로 변환하여 전송하는 PCI-E Card 입니다. 또한, PCI Express Interface를 통해 Hardware 제어가 가능하도록 구성되어 있습니다.
Input Specification
- DS3 (ITU-T G.703 Section 8) C-bit/M13 supported
- FEC support (only DS3)
- DVB-ASI (Byte, Packet mode) support
- DS3 supported to 188/204 TS Packet size
- UDP(Multicast, Unicast), ARP, IGMP V2, ICMP (ping reply)
- UDP Port Filtering, one UDP Channel
- Lock status (only Input)
- Linux Kernel Version 3.10.0-957.e17.x86_64 (Device Driver Compile Version)
Output Specification
- DS3 (ITU-T G.703 Section 8) C-bit/M13 supported
- FEC support (only DS3)
- DVB-ASI (Byte, Packet mode) support
- DS3 supported to 188/204 TS Packet size
- UDP(Multicast, Unicast), ARP, IGMP V2, ICMP (ping reply)
- UDP Port Filtering, one UDP Channel
- Lock status (only Input)
- Linux Kernel Version 3.10.0-957.e17.x86_64 (Device Driver Compile Version)
