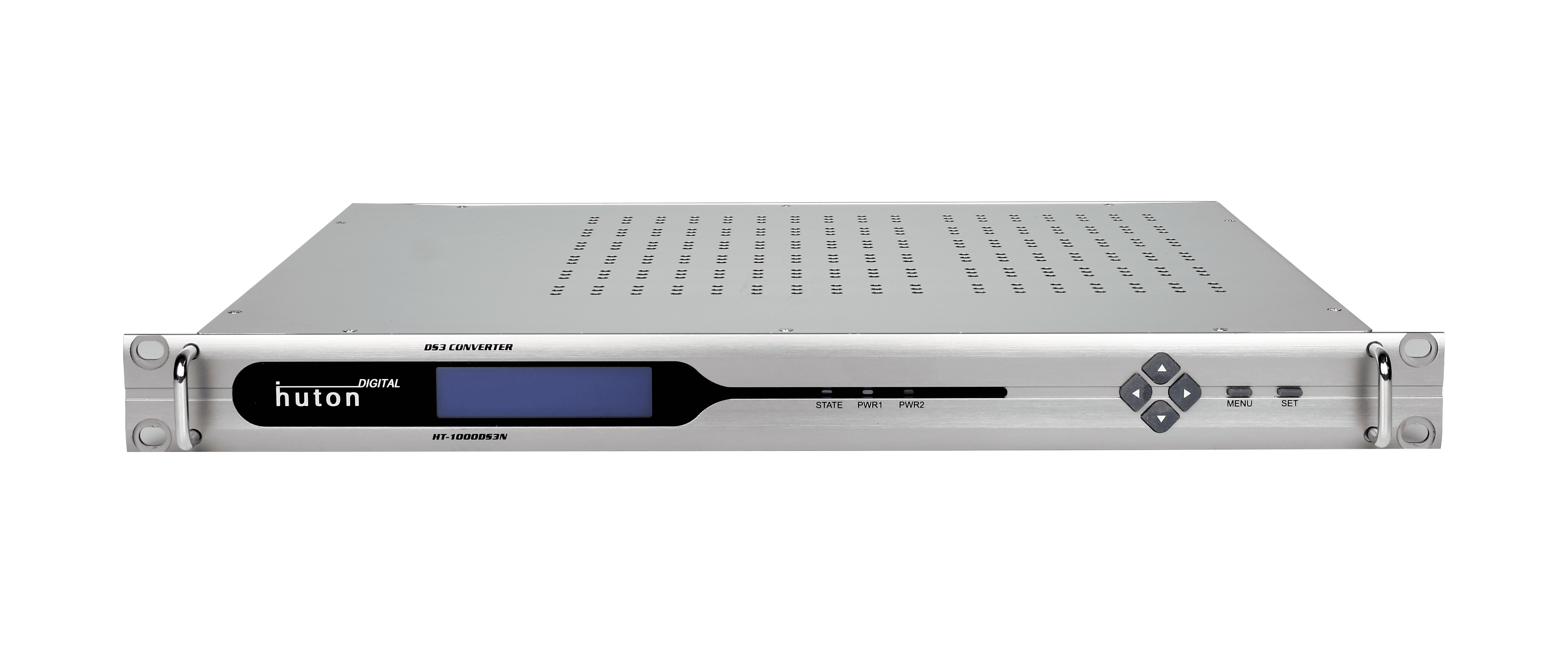

HT-1000DS3N
PRODUCT
제품의 특징
DS3 (ITU-T G.703 Section 8) C-bit/M13 supported
FEC support (only DS3)
DVB-ASI (Byte, Packet mode) support (max 150Mbps)
SMPTE 310M supported (19.392Mbps)
IP supported to max 600Mbps
UDP/IP (Multicast, Unicast) supported (max 600Mbps)
ARP, IGMP, ICMP(only Ping) supported
DS3 supported to 188/204 TS Packet size
REMUX supported
Lock status (only Input)
Front panel control & Optional Ethernet control
Green Function for power saving
NMS supported
Dual Power supported
Overview
- HT-1000DS3N은 DS3 기반의 Converter 장비로써 전송 매체 별 입력된 방송 스트림들을 보내고자 하는 전송 매체로 변환하여 송출하는 장비 입니다. 또한, Main Frame, DS3ASI Card, SMPTE 310M Card, IP Card의 구성으로 탈/부착이 가능 합니다.
Input Specification
- G.703 : DS3 C-bit/M13 (44.736Mbps, 20PPM), 75 ohm (Imp), 1 port
- DVB-ASI : 188 TS Packet, Byte/Packet mode, 75 ohm (Imp), 1 port
- SMPTE 310M : 188 TS Packet, 75 ohm (Imp), 1 port
- IP : UDP/IP (Multicast/Unicast), ARP, ICMP, 1 port
Output Specification
- G.703 : DS3 C-bit/M13 (44.736Mbps, 20PPM), 75 ohm (Imp), 2 port
- DVB-ASI : 188 TS Packet, Byte/Packet mode, 75 ohm (Imp), 3 port
- SMPTE 310M : 188 TS Packet, 75 ohm (Imp), 3 port
- IP : UDP/IP (Multicast/Unicast), ARP, ICMP, IGMP, 3 port
Data Processing
- Remultiplexer : PID filter, Bitrate control, PCR correction, PSI generation
- Audio Detecting : DS3 TS Packet mode (188/204)
- PCR : PCR correction, PCR match to TS Generation
- FEC : Randomization/Derandomization, Reed Solomon Encode/Decode, Interlever/Deinterleaver
Physical Power
- Dimension : 485mm(L) x 45mm(H) x 370mm(D)
- Weight : 2.3 kg
- Input Voltage : AC100 ~ 240V, 50/60Hz
- Power Consumption : 15 Watt
