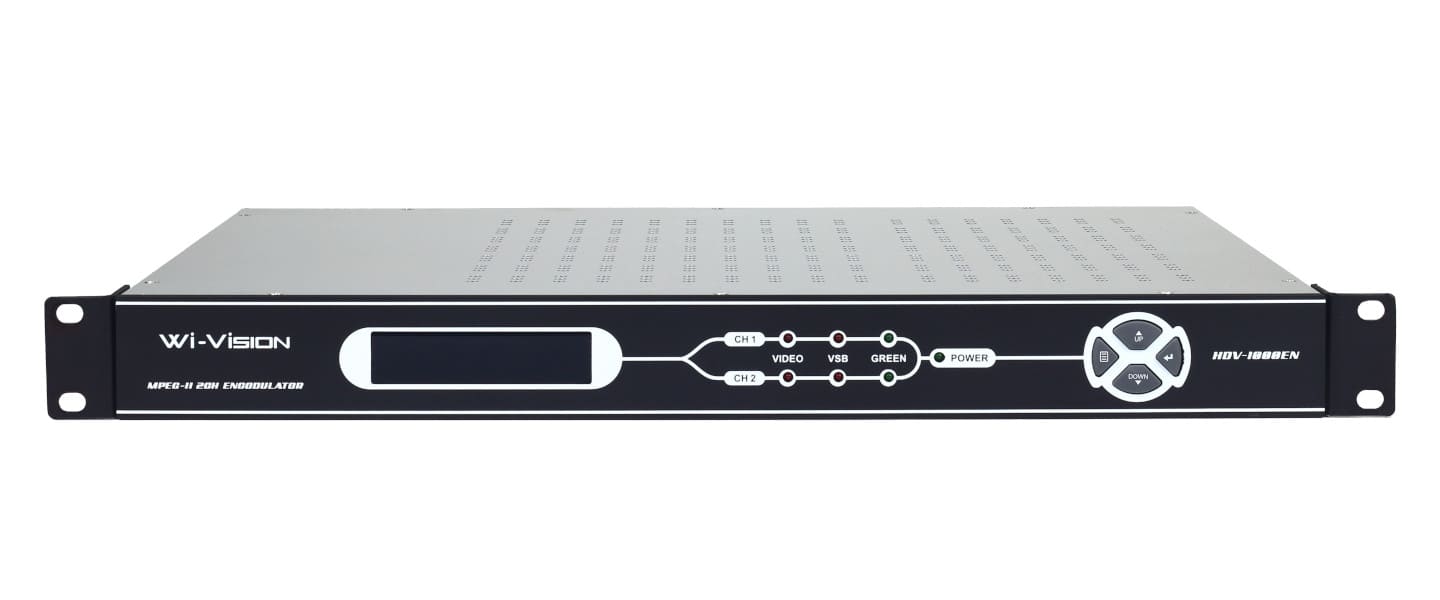

HDV-1000EN(2CH)
PRODUCT
_1440.jpg)
제품의 특징
• 2ch MPEG-2 HD (MP@HL) or MPEG-2 SD (MP@ML) Video encoding
• 2ch Dolby Digital or MPEG-1 Layer-2 Audio encoding
• MPEG-2 HD/SD _ 2 x HDMI, SDI(option), Component, Composite Video input
• MPEG-2 HD/SD _ 2 x Embedded HDMI, SDI(option) Audio, 2 x Analog Audio input
• Automatically detecting Video Resolution
• Standard Digital RF output (54 ~ 864 MHz) with level of 0 dBm
• Built in PSIP (VCT)
• Front panel control & Optional Ethernet control
• Power saving Function
Overview
- HDV-1000EN(2CH)은 2채널을 지원하는 MPEG-2 Encoder와 Modulator가 내장된 일체형 장비로서 MPEG-2 HD와 MPEG-2 SD를 모두 지원하며, HD 및 SD 입력 신호를 수용하여 고화질의 MPEG-2 신호로 압축한 후 국내 디지털 지상파 방송 표준 규격인 ATSC(8VSB)로 변조하여 RF신호로 송출하여 주는 장비입니다.
Input Specification
- Video : 2ch HDMI or Component, Composite, Optional SDI Video
- Audio : 2ch Embedded HDMI or 2ch Stereo Analog Audio, Optional 2ch Embedded SDI Audio
Output Specification
- 2 x Digital RF(8VSB) output
- RF Output Level : 0 dBm +/- 5 dB
- Spurious : less than - 60 dB
- Return Loss : more than 10 dB @ 75ohm
- Phase Noise : Typical - 98 dBc/Hz @ 20 KHz
- Group Delay Time : +/- 50 ns
- RF Level Control Step : 1 dB
- Attenuation Level : max. 19 dB / ch
- Signal to Noise : Typical 32 dB at RF
Data Processing
- Video Encoding : 2ch MPEG-2 HD/SD (MP@HL/ML), 4:2:2
- Audio Encoding : 2ch Dolby Digital or MPEG-1 Layer-2
- 1 ~ 18 Mbps of Video encoding bit rate (0.5 step)
- 192/256/384 kbps, 160kbps of Audio encoding bit rate
- Resolution : 1080p, 1080i, 720p, 480i
Digital Modulation
- ATSC 8VSB modulation / 19.392000 Mbps of bit rate processing
Physical and Power
- Dimension : 485mm(L) x 45mm(H) x 320mm(D)
- Weight : 2.5 kg
- Input Voltage : AC110 - 220V~, 50/60Hz
- Power Consumption : 25 Watt
