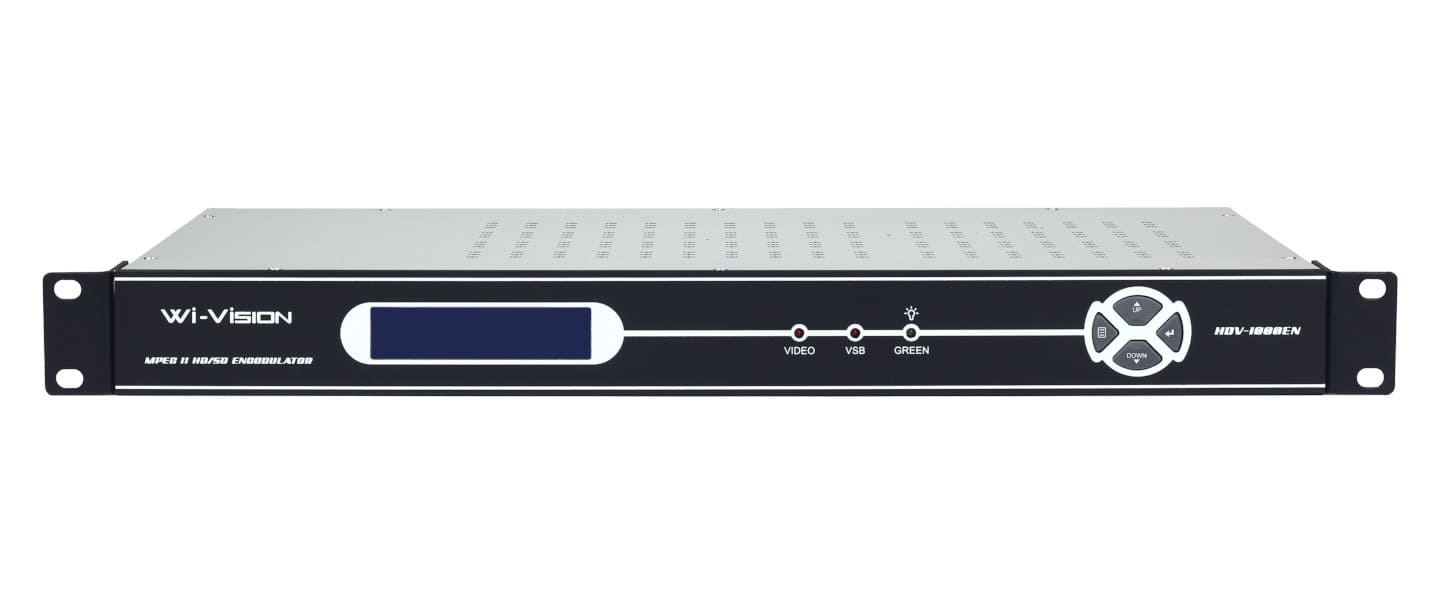

HDV-1000EN
PRODUCT
제품의 특징
• MPEG-2 HD (MP@HL) or MPEG-2 SD (MP@ML) Video encoding
• Dolby Digital or MPEG-1 Layer-2 Audio encoding
• MPEG-2 HD/SD _ HDMI or Component Video input, Optional SDI Video input
• MPEG-2 SD _ Composite Video input
• MPEG-2 HD/SD _ Embedded HDMI or Stereo Analog (L/R) Audio input, Optional Embedded SDI Audio input
• MPEG-2 SD _ Stereo Analog (L/R) Audio input
• Automatically detecting Video Resolution
• Standard Digital RF output (54 ~ 864 MHz) with level of 0 dBm
• Built in PSIP (VCT)
• Front panel control & Optional Ethernet control
• Power Saving Function
Overview
- HDV-1000EN은 MPEG-2 Encoder와 Modulator가 내장된 일체형 장비로서 MPEG-2 HD와 MPEG-2 SD를 선택하여 지원하며, 다양한 형태의 HD 및 SD 입력 신호를 수용하여 고화질의 MPEG-2 신호로 압축한 후 국내 디지털 공중파 표준 규격인 ATSC(8VSB) 방식으로 변조하여 RF신호로 송출하여 주는 장비입니다.
Input Specification
- Video : HDMI or Component, Composite, Optional SDI Video
- Audio : Embedded HDMI or Stereo Analog (L/R) Audio, Optional Embedded SDI Audio
Output Specification
- Digital RF(8VSB) output
- RF Output Level : 0 dBm +/- 5 dB
- Spurious : less than - 60 dB
- Return Loss : more than 10 dB @ 75ohm
- Phase Noise : Typical - 98 dBc/Hz @ 20 KHz
- Group Delay Time : +/- 50 ns
- RF Level Control Step : 1 dB
- Attenuation Level : max. 19 dB
- Signal to Noise : Typical 32 dB at RF
Data Processing
- Video Encoding : MPEG-2 HD/SD (MP@HL/ML), 4:2:2
- Audio Encoding : Dolby Digital or MPEG-1 Layer-2
- 1 ~ 18 Mbps of Video encoding bit rate (0.5 step)
- 192, 256 or 384 kbps of Audio encoding bit rate
- Resolution : 1080p, 1080i, 720p, 480i
Digital Modulation
- ATSC 8VSB modulation / 19.392000 Mbps of bit rate processing
Physical and Power
- Dimension : 485mm(L) x 45mm(H) x 250mm(D)
- Weight : 2.3 kg
- Input Voltage : AC100 - 220V~, 50/60Hz
- Power Consumption : 15 Watt
